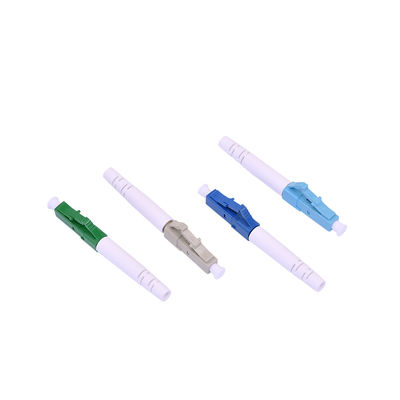

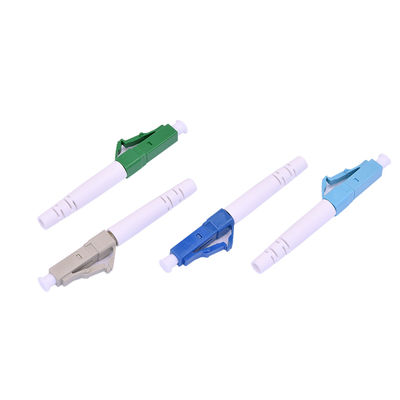

Simplex LC Fiber Optical Connector 3.0mm PC For High Density Networking Environments

Simplex LC Fiber Optical Connector 3.0mm PC For High Density Networking Environments

Nama merek:	HACEN
Nomor Model:	LC 3.0mm
MOQ:	5000pcs
Harga:	negotiable
Ketentuan Pembayaran:	L/C, T/T, Western Union
Kemampuan Penyediaan:	Tergantung pada rongga dan perkakas

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

RoHs ,ISO9001,ISO14001,ISO45001

Diameter:

0.9mm/2.0mm/3.0mm

Tipe serat:

Mode tunggal/multi-mode

Tipe konektor:

Warna boot:

Biru, Hijau, Krem, Aqua

Kisaran suhu:

-40 ° C hingga +85 ° C.

Jenis produk:

Konektor serat optik

Kepatuhan Rohs:

Aplikasi:

Telekomunikasi, Pusat Data, CATV, LAN, WAN, FTTX

Kemasan rincian:

Karton

Menyediakan kemampuan:

Tergantung pada rongga dan perkakas

Menyoroti:

LC fiber optic connector 3.0mm PC

high density LC fiber connector

Simplex LC connector networking

Deskripsi Produk

Simplex LC Fiber Optical Connector 3.0mm PC For High Density Networking Environments

LC is a small form factor connector. It’s a standard ceramic ferrule connector, easily terminated with any adhesive.

Please note that this document is for reference purposes only and may not fully correspond to the actual product. To ensure accuracy and prevent any information leakage .please contact us directly for the correct documentation.

LC Simplex Connectors

- Efficient Design: Ultra-compact SFF for space optimization.

- Versatile: Compatible with 0.9mm, 2.0mm, and 3.0mm boot connectors.

- Applications: Suitable for single and multi-mode applications.

- Packaging: High-density packaging for versatility.

- Durability: Offered in two-piece or uniboot designs.

Availability
- The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
- Housing kits without ferrule are available.
- PC/ APC /UPC are available

- Different colors and size are available

Feature

- Low insertion loss and return loss

- Free-floating ceramic ferrule

- UL-rated plastic housing and boot

- Boots in a variety of colors

- High precision alignment

Application

- CATV, metro test equipment; FTTH;

- Telecommunication system;

- Local area networks (LANs);

- Wide area networks (WANs);

- Passive Optical Networks (PONs);

Advantages

- Space-saving design for high-density deployments.

- Easy-to-use latch mechanism for secure connections.

- Excellent performance with low insertion and return losses.

- Widely adopted, making them compatible with most systems and devices.

Name	Fiber Optic Connector
Material	Plastic / Metal
Color	Customization
Insetion Loss	≤0.25dB
Durability	≥55dB (UPC)
Endface	PC UPC APC
Diamentions	0.9mm 2.0mm 3.0mm
Fiber Type	SM MM

Simplex LC Fiber Optical Connector 3.0mm PC For High Density Networking Environments 0
