LC Connectors Kits simplex 0.9mm For Single Mode With Low Insertion Loss

LC Connectors Kits simplex 0.9mm For Single Mode With Low Insertion Loss

Nama merek:	HACEN
Nomor Model:	Kit konektor LC 3.0mm
MOQ:	5000pcs
Harga:	0.11-0.15
Ketentuan Pembayaran:	L/C, T/T, Western Union
Kemampuan Penyediaan:	Tergantung pada rongga dan perkakas

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

RoHs ,ISO9001,ISO14001,ISO45001

Tipe serat:

Mode tunggal/multimode

sertifikasi:

RoHS,ISO45001,ISO14001,ISO9001

Warna boot:

Biru/Krem/Hijau/Aqua

Tipe Boot:

Standar/Pendek/Panjang

Jumlah serat:

Simplex/Duplex

Pemolesan serat:

PC/UPC/APC

Berat:

Bahan:

PBT

Kemasan rincian:

Karton

Menyediakan kemampuan:

Tergantung pada rongga dan perkakas

Menyoroti:

LC fiber optic connector kit

simplex 0.9mm LC connector

single mode LC connector with warranty

Deskripsi Produk

LC Connectors Kits simplex 0.9mm For Single Mode With Low Insertion Loss

LC Fiber Connector	SM UPC/APC	MM
Insertion Loss Typical	0.15dB	0.1dB
Insertion Loss Max	0.3dB	0.3dB
Return Loss Typical	APC≥65 UPC≥55	≥25
Ferrule Size	125.3um	127um

LC Simplex Connectors

-Efficient Design: Ultra-compact SFF for space optimization.

-Versatile: Compatible with 0.9mm, 2.0mm, and 3.0mm boot connectors.

-Applications: Suitable for single and multi-mode applications.

Availability
-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
-Housing kits without ferrule are available.
-PC/ APC /UPC are available

-Different colors and size are available

FAQ

1. What are we selling ?
Fiber optic connectors and adapters. like LC .MPO.SC.E2OOO…..also you can set up new mold with us. We offer service from mold design to final plastic molding injection

2. How can we guarantee quality?

From raw materials to final shipment, we can offer inspection report or related certifications.

3. Why us ?
We focus on the fiber optical components for over 15 years , such as adapters, connectors and ONU boxes . experienced in molding injection for over 20years like consumer plastic ,auto plastic ,

4. What materials are we using ?

TPEE, TPU, PEI, PBT, nylon, LCP, PPS, POM, PC, ABS and some others too.

5. Do you support customization?

Yes , both OEM and ODM are available.

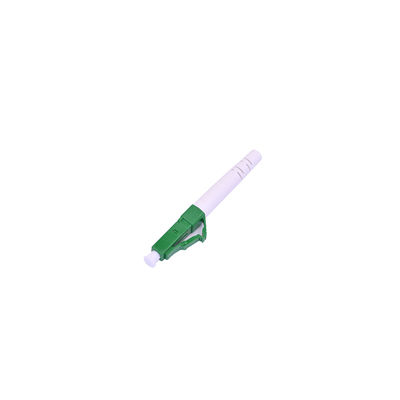

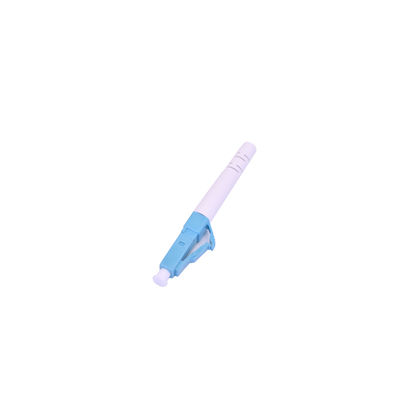

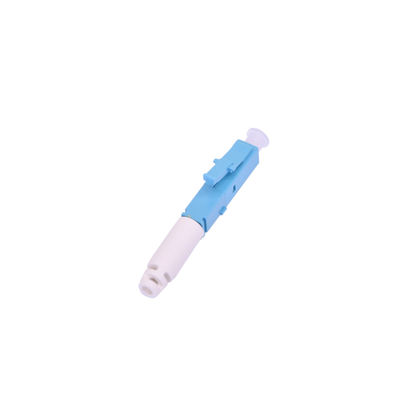

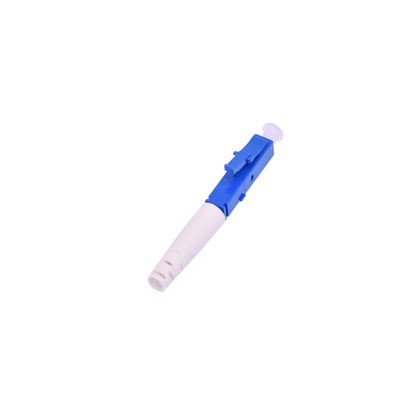

LC Connectors Kits simplex 0.9mm For Single Mode With Low Insertion Loss 0
